304 Steel Structure Battery Needle Extrusion Testing Machine With Motor Servo Drive

Name: 304 Steel Structure Battery Needle Extrusion Testing Machine With Motor Servo Drive
Brand: HBYIQI
Price: 1 USD

Cheap 304 Steel Structure Battery Needle Extrusion Testing Machine With Motor Servo Drive for sale

Brand Name : HBYIQI

Model Number : HB-DC34-C-20KN

Certification : CE, ISO-9001

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T

Delivery Time : 15 days

Packaging Details : International Standard Package

Control Mode : PC with split type

Power supply : AC 220V 50HZ or customization

Squeeze range : 0-300mm

Squeeze speed : 0.01-15mm/s (Adjustable)

Test channel : Voltage, Temperature, Video

Data collection : Pressure, Voltage, Temperature, Displacement, Video

Contact Now

Battery Testing Equipment Battery Needle Extrusion Testing Machine

Brand: HBYIQI

Equipment name: Battery needle extrusion testing machine (PC touch + explosion-proof type)

Standard Basis:
IEC62133-2012
UL1642
UN38.3
GB 31241-2022

Appliance:
As one of the important equipment for battery safety performance testing, the temperature-controlled battery needling extrusion testing machine simulates the situation of the battery being squeezed or needling during the use, transportation and storage of all kinds of batteries, and artificially presents the different conditions that may occur when the battery is subjected to strong external extrusion or sharp object puncture.

Technical Parameter:

Model	HB-DC34-C-20KN
Control Mode	Split type, PC control
Extrusion speed	0.01-15mm/s (Adjustable)
Drive mode	Motor servo
Unit conversion	Kg/N/Lb
Extrusion range	0-300mm
Extrusion accuracy	± 0.5%
Squeeze hold time	0-99 hours, 99 minutes, and 99 seconds
Power supply	AC 220V 50HZ
Test mode	The master control software can simultaneously collect and control the force, displacement, voltage and temperature changes in the extrusion process, and make corresponding program control according to test standard requirements.
Voltage measurement (standard 1 channel)
Voltage measurement range	0-10V or 0-100V (optional) (multi-channel can be customized on request)
Voltage measurement accuracy	F.S±0.5%
Battery surface temperature measurement (standard 1 channel)
Temperature range	RT-1000℃ (multi-channel can be customized according to requirements)
Temperature deviation	≤±2℃
Temperature resolution	0.1°C
Video recording (standard 1 channel)
Video recording	HD camera, taking pictures, video, recording storage
Data acquisition
Data collection	pressure, voltage, temperature, displacement,video
Data output	pressure, voltage, temperature, video, showing record storage, test data can be directly exported with U disk screenshot;

Box structure
Structure	All-in-one Machine
Inner box size	W600xD500xH500mm
Inner box material	304# stainless steel (thickness 1.0mm)
Outer box size	W820xD820xH1820mm
Outer box material	Cold rolled plate paint (thickness 1.0mm, total thickness of 100mm with inner box)
Insulation layer thickness	100mm
Visual window	300x300mm (20mm thick tempered explosion-proof glass) plus protective steel mesh
Input power requirements
Power supply	AC 220V 50HZ or customized by country
Power	1.5KW
Battery tooling
Battery extrusion tooling	1 set (can be customized according to battery specifications)
Battery needling tools	1 set (can be customized according to battery specifications)
Optional parts
Added item	Adding temperature acquisition channel, voltage acquisition system, video monitoring system, smoke alarm system, fire extinguishing system, fixture.

Safety Protection Design

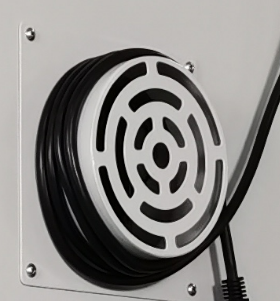

Pressure release vent: Automatic explosion-proof pressure relief device

304 Steel Structure Battery Needle Extrusion Testing Machine With Motor Servo Drive

Smoke outlet: Get rid of the smoke

304 Steel Structure Battery Needle Extrusion Testing Machine With Motor Servo Drive

Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety

Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.

Insulation plate: Prevent battery short circuit

Double-layer explosion-proof tempered glass: Protection is more secure.

Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.

If you want to know more information about this machine, leave your message for the requirement freely, we'd love to provide the best service for you asap.
